TürkçeRubber Vulcanizing Machine (4RT)
Rubber Presses
Rubber Vulcanizing Machine (4RT)
These are machines that enable the easiest production of rubber producs. As Kavis Machinery, we produce machines ranging from 50 tons to 500 tons and with table sizes of 1000x1000 mm.
These machines fully meet the 150kg/cm² Pressure requirement of rubber products. As Kavis Machinery, the 2RT, 3RT, 4RT mold release systems used in other machines are also easily used in this machine and offer a highly efficient production process with high security.
Application Areas
Automotive Industry
Medical Supplies
Industry Spare Parts
Electrical Applications
Options
Open and Close
Vacuum Unit
Mold Slide Out
Internal Upper Opening
Internal Bottom Opening
Bottom Ejector
Internal Side Opening or Lock
Two Plates Open and Turning

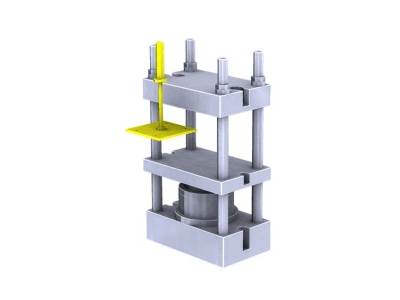

Upper Ejector

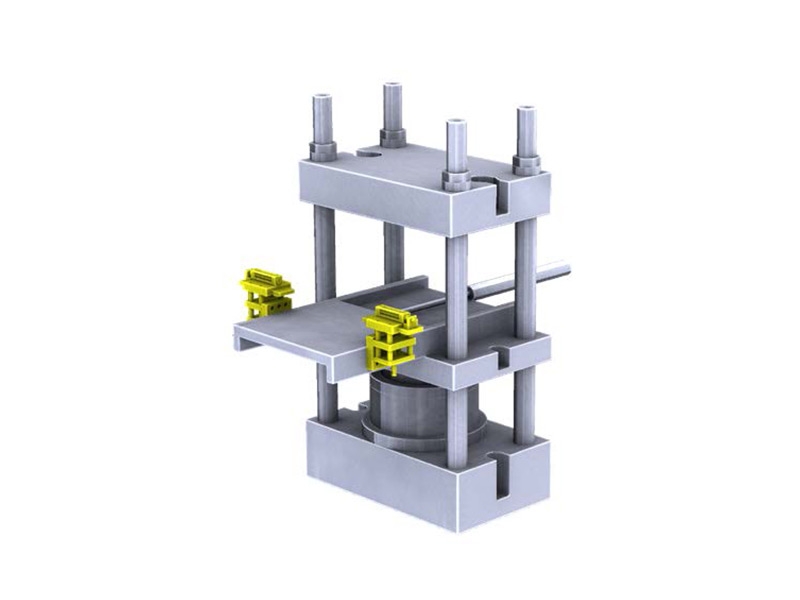

External Side Opening or Lock
Two Plates Opening
Three Plates Opening
Technical Specifications
| Specification | Unit | PRS/N-50 | PRS/N-80 | PRS/N-100 | PRS/N-150 | PRS/N-200 | PRS/N-250 | PRS/N-300 | PRS/N-400 | PRS/N-500 |
|---|---|---|---|---|---|---|---|---|---|---|
| Clamp Force | Ton | 50 | 80 | 100 | 150 | 200 | 250 | 300 | 400 | 500 |
| Piston Stroke | mm | 250 | 200 | 250 | 250 | 300 | 400 | 400 | 450 | 500 |
| Table Size | mm | 300*300 | 400*400 | 450*450 | 500*500 | 600*600 | 650*650 | 700*700 | 750*750 | 900*900 |
| Mold Size | mm | 400*300 | 500*400 | 550*450 | 600*500 | 700*600 | 750*650 | 800*700 | 850*750 | 1000*900 |
| Piston Diameter | mm | 180 | 230 | 270 | 310 | 355 | 400 | 430 | 500 | 550 |
| Heating Power | kW | 5 | 10 | 12 | 12 | 13 | 15 | 20 | 30 | 35 |
| System Pressure | Bar | 210 | 210 | 210 | 210 | 210 | 210 | 210 | 210 | 210 |
| Oil Tank | L | 150 | 200 | 200 | 200 | 250 | 250 | 400 | 400 | 500 |
| Pump Type | Type | Vane | Vane | Vane | Vane | Vane | Vane | Vane | Vane | Vane |
| Dimensions (W-H) | m | 1.2x2.0 | 1.2x2.0 | 1.5x2.0 | 1.5x2.0 | 1.5x2.0 | 1.5x2.0 | 1.8x2.2 | 2.0x2.5 | 2.0x2.5 |
| Weight | Kg | 4500 | 5000 | 5000 | 5000 | 6000 | 6500 | 7000 | 9000 | 12000 |
| Height | m | 2.2 | 2.2 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
Get a Quote
4RT rubber vulcanization machine prices vary depending on tonnage, platen size, and optional features. We offer machines ranging from 50 to 500 tons. Our machines are compatible with 2RT, 3RT, and 4RT mold separation systems. They are suitable for manufacturers using multi-plate molds. We manufacture in Konya and offer pricing and service advantages compared to imported machines. We maintain spare parts support for all our machines for many years.
